Construction Specifications
Solid wood door and drawer front stiles and rails are constructed with mortise and tenon joints.
Compact Blumotion soft-close mechanism integrated in concealed six-way adjustable hinges. Hinges open at 110°
⅝” solid wood dovetail drawer with a ⅜" plywood bottom features Tandem plus Blumotion full-extension concealed drawer runners
2½” interior drawer height.
¾” x 1½” solid wood face frame.
½” select veneered plywood back with a natural finished interior.
½” select unfinished plywood side panels grooved into face frame.
15mm (⅝”) select veneered plywood adjustable shelving with matching wood veneer edge banding.
¾"x 4½" unfinished plywood toe kick attached to cabinet.
Matching ¼" toe kick cover to be ordered separately.
2½” x ½” plywood* panel beams dovetailed into the side panels for strength and stability.
Base cabinet has 11⅞" deep shelf.
Base has a full overlay door. When placing an order, need to select exposed sides; Right, Left or Both.
A ¼" select medium-density fiberboard panel will be applied to the selected side(s), and the side will be near flush finished.
Wall cabinet has a modified overlay door. Crown can be mounted on the face frame.

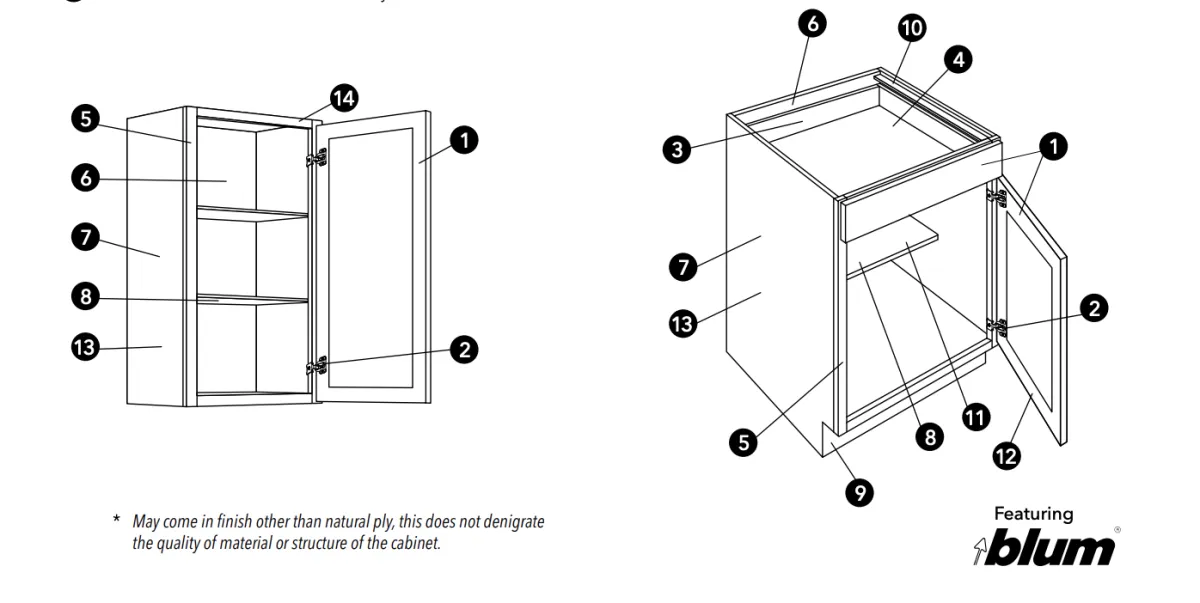

Rendering OF CABINETS
